multiview-stitcher

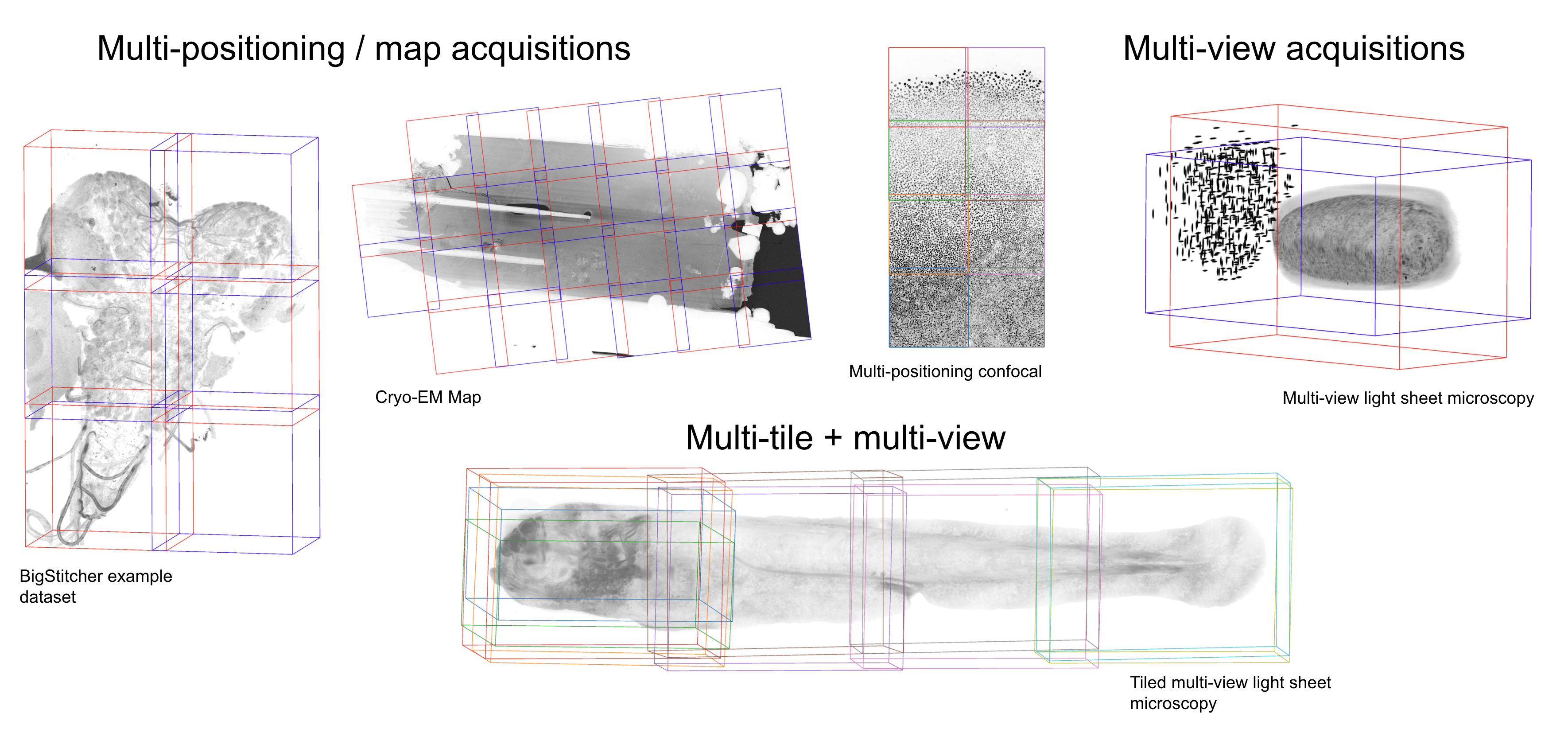

multiview-stitcher is an open-source modular toolbox for distributed and tiled stitching of 2-3D image data in python. It is a collection of algorithms to register and fuse small and large datasets from multi-positioning and multi-view light sheet microscopy, as well as other modalities such as correlative cryo-EM datasets. As such, it shares considerable functionality with the Fiji plugin BigStitcher, with the difference that it is designed for interoperability with the Python scientific ecosystem. This allows it to:

  • easily integrate into existing Python-based workflows (within Jupyter notebooks, scripts, etc.) 🐍
  • scale to very large datasets using mature Python tooling (using dask, zarr-python, ray) 🚀
  • make use of community-developed data representations (xarray, spatial-image, multiscale-spatial-image, spatialdata) 🤓
  • ensure compatibility with and optimal usage of modern file formats and standards, e.g. OME-Zarr
  • swap in custom methods for registration and fusion that are readily available in the Python ecosystem (e.g. from scikit-image, ANTs, elastix, SimpleITK) 🔧

👀 Visualization: The associated napari-stitcher provides visualization functionality using the Napari viewer, including a standalone widget for stitching vanilla napari image layers. Alternatively, web-based visualization of huge datasets together with their associated transformations is supported using neuroglancer (no additional installation required! See e.g. the exaSPIM example notebook).

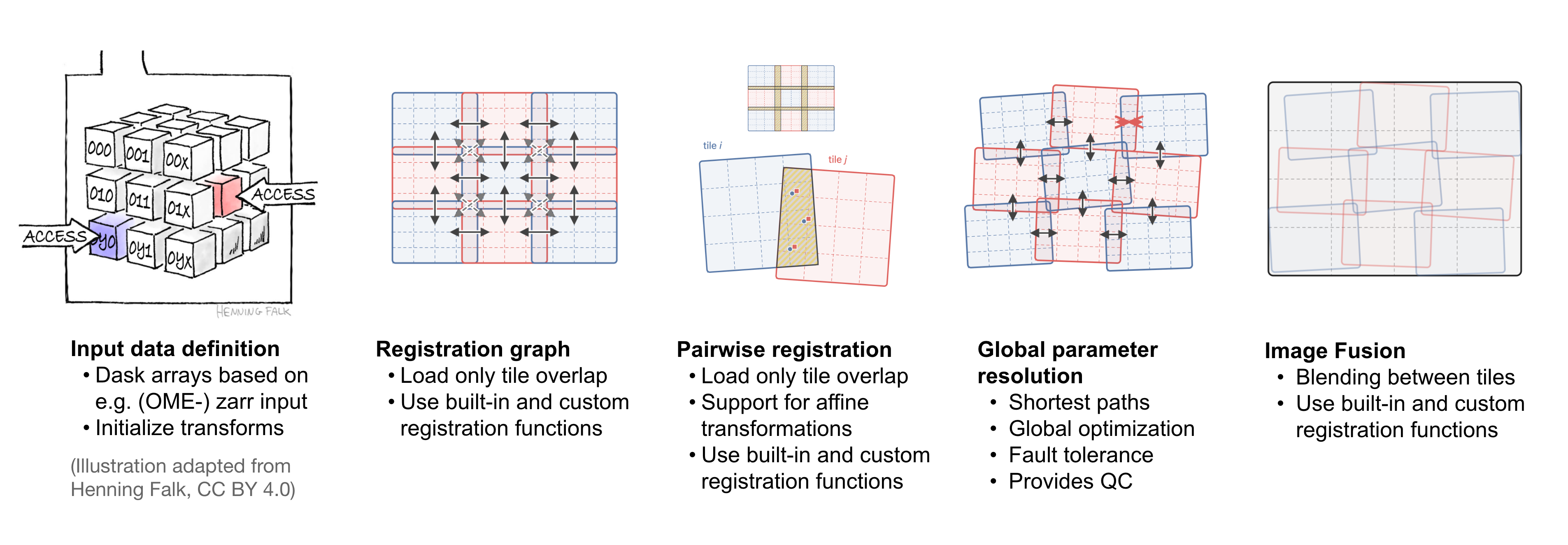

🛠️ Extensibility: Next to the built-in functions for pairwise registration, fusion and view weighing, custom functions with a simple API can be provided by the user. Multiview-stitcher provides these functions with chunk-sized and pre-transformed image arrays, taking care of the overall stitching workflow and large data handling.

🚀 Scalability: The package is designed to handle very large datasets that do not fit into memory. It leverages zarr, dask and ray for efficient data handling and processing. For example, multiview-stitcher can fuse cloud-hosted exaSPIM datasets of >100TB each (see example notebook).

🔄 Transformations: multiview-stitcher supports both input and output tile transformations, as well as registration results to be full affine transformations. This includes simple shifts / translations, as well as rotation and scaling for advanced stitching or multi-view fusion. Non-rigid transformations are not supported at the moment.

Napari plugin

There's an associated napari plugin: napari-stitcher.

Known limitations

  1. The current implementation focuses on rigid transformations (translation, rotation). Non-rigid transformations are not supported at the moment.
  2. In terms of data volumes, processing huge tiles is handled well. A large amount of tiles (e.g. more than hundreds) works but can be slow during registration, as the currently built-in global optimization method converges slowly for large numbers of tiles.
  3. Open an issue if you encounter any problems or have suggestions for improvements!

Roadmap / Future plans

Some planned improvements for future releases:

  1. Implement a hierarchical and parallelised global registration optimization for faster registration of datasets with large numbers of tiles (>100s).
  2. Implement more built-in registration and fusion methods:
    1. Feature-based registration
    2. Multiview deconvolution-based fusion
  3. The built-in option to subdivide tiles / views for working with piecewise affine transformations that account for local distortions observed in e.g. large FOV light sheet data.
  4. Open an issue if you have suggestions for improvements!
