Registration overview

Registration aligns all views / tiles to a common physical coordinate system so they can subsequently be visualized or fused without misalignments or blurring. registration.register is the main entry point.

High-level workflow

graph LR
    A[Input msims\n+ transform_key] --> B[Build overlap graph]
    B --> C[Prune registration pairs]
    C --> D[Pairwise registration\nper edge]
    D --> E[Quality filtering\noptional]
    E --> F[Global parameter\nresolution]
    F --> G[Output transforms\n→ new_transform_key]

Build overlap graph — from tile bounding boxes in the starting coordinate system (transform_key). Edges connect tiles whose bounding boxes intersect (optionally extended by overlap_tolerance).
Prune registration pairs — remove redundant or diagonal edges before running the (expensive) pairwise registration step.
Pairwise registration — for each edge, crop the overlap region from both tiles and run a registration function to find the transform that aligns them.
Quality filtering — optionally discard edges whose cross-correlation quality is below a threshold.
Global parameter resolution — find a globally consistent set of transforms from the noisy pairwise estimates (least-squares-style optimization or shortest-paths chaining).
Write transforms — attach the result as a new transform_key to every input msim.

Minimal example

from dask.diagnostics import ProgressBar
from multiview_stitcher import registration

with ProgressBar():
    params = registration.register(
        msims,
        reg_channel="DAPI",
        transform_key="stage_metadata",
        new_transform_key="translation_registered",
    )

params is a list of xr.DataArray transforms — one per view — mapping each view into the new coordinate system. The same transforms are also attached to the input msims under new_transform_key.

Key parameters

Parameter	Default	Description
`msims`	—	List of `MultiscaleSpatialImage` inputs
`transform_key`	`None`	Starting coordinate system (e.g. `"stage_metadata"`)
`new_transform_key`	`None`	Name for the output coordinate system. If `None`, transforms are returned but not written back to the `msims`.
`reg_channel`	`None`	Channel name to use for registration (takes priority over `reg_channel_index`)
`reg_channel_index`	`None`	Channel index to use for registration
`registration_binning`	`None`	Spatial binning applied during registration, e.g. `{"z": 2, "y": 4, "x": 4}`. Auto-set when omitted.
`reg_res_level`	`None`	Resolution pyramid level to use (0 = full res). Auto-determined when omitted.
`overlap_tolerance`	`0.0`	Extend the considered overlap region by this amount in physical units. Use `None` to use the full tile extent.
`pairwise_reg_func`	`phase_correlation_registration`	Registration function for each tile pair.
`pairwise_reg_func_kwargs`	`None`	Extra arguments forwarded to `pairwise_reg_func`.
`groupwise_resolution_method`	`"global_optimization"`	How pairwise results are combined into global transforms.
`groupwise_resolution_kwargs`	`None`	Extra arguments for the resolution method (e.g. `{"transform": "rigid"}`).
`pre_registration_pruning_method`	`"alternating_pattern"`	Which edges to register (see below).
`post_registration_do_quality_filter`	`False`	Whether to remove low-quality edges after pairwise registration.
`post_registration_quality_threshold`	`0.2`	Spearman correlation threshold for quality filtering.
`plot_summary`	`False`	Plot cross-correlation values and per-edge residuals after registration.
`n_parallel_pairwise_regs`	`None`	Limit concurrent pairwise registrations (useful to cap memory).
`return_dict`	`False`	If `True`, return a dict with params, quality metrics, plots, and the registration graph.

Registration functions

pairwise_reg_func controls the algorithm used for each tile pair.

Function	Best for
`phase_correlation_registration` (default)	Fast, translation-only; robust for most tiled acquisitions
`registration_ANTsPy`	Rigid / affine alignment; multi-modal data; requires `antspyx`
`registration_ITKElastix`	Rigid / affine alignment; flexible metrics; requires `itk-elastix`

See Built-in pairwise registration methods for full parameter reference and Pairwise registration extension API to plug in a custom function.

Pre-registration pruning

The overlap graph typically contains many redundant edges (e.g. diagonal neighbours in a grid). Pruning removes these before registration to save compute time.

Method	When to use
`"alternating_pattern"` (default)	Regular 2-D grid layouts — keeps a checkerboard subset of edges
`"otsu_threshold_on_overlap"`	Regular 2-D or 3-D grids — automatically prunes low-overlap diagonals
`"keep_axis_aligned"`	Explicitly remove diagonal pairs regardless of layout
`"shortest_paths_overlap_weighted"`	Irregular tile arrangements — minimises number of pairs while maintaining connectivity
`None`	Irregular arrangements with no obvious structure; registers all overlapping pairs

Global parameter resolution

After pairwise registration, groupwise_resolution_method resolves a globally consistent set of transforms. The default is "global_optimization" (least-squares, supports translation through affine); alternatives are "linear_two_pass" (faster, translation/rigid) and "shortest_paths" (deterministic chain, fastest). Control the output transform type via groupwise_resolution_kwargs={"transform": "rigid"} (or "affine", etc.).

See Built-in global parameter resolution methods for full details on each method and its options.

Using higher-order transforms

For rigid, similarity, or affine registration, set both the pairwise function and the global resolution transform type:

from multiview_stitcher import registration

params = registration.register(
    msims,
    reg_channel="DAPI",
    transform_key="stage_metadata",
    new_transform_key="affine_registered",
    pairwise_reg_func=registration.registration_ITKElastix,
    pairwise_reg_func_kwargs={"transform_types": ["Translation", "Rigid"]},
    groupwise_resolution_kwargs={"transform": "rigid"},
)

Getting registration diagnostics

Pass plot_summary=True to show the following summary plots (in a Jupyter Notebook):

1) Pairwise image registration quality

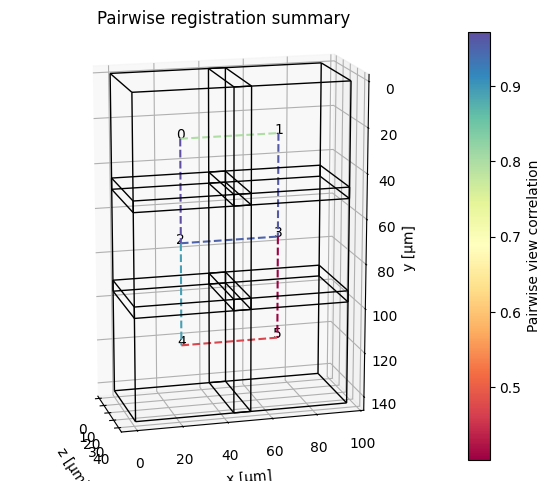

Registration summary: Pairwise quality

Colors indicate the registration quality as reported by the pairwise registration function (e.g. cross-correlation in the case of registration.phase_correlation_registration).

2) Residual misalignment after global parameter resolution

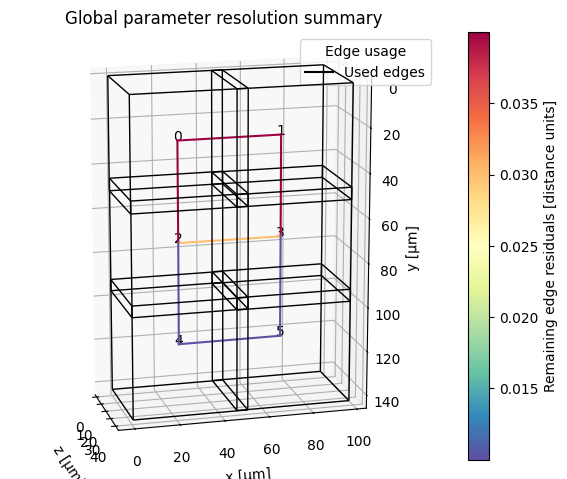

alt text

Here, two types of information are shown:

Colors indicate the residual misalignment after global parameter resolution, measured as the mean remaining distance between virtual fiducial markers placed on the corners of overlap regions between connected tiles.
Dotted lines indicate edges that were removed by the global parameter resolution step (e.g. due to low quality or being part of a loop with high residuals).

Pass return_dict=True to access quality metrics in a dictionary:

result = registration.register(
    msims,
    reg_channel="DAPI",
    transform_key="stage_metadata",
    new_transform_key="translation_registered",
    plot_summary=True,
    return_dict=True,
)

params   = result["params"]
qualities = result["pairwise_registration"]["metrics"]["qualities"]
residuals = result["groupwise_resolution"]["metrics"]["edge_residuals"]

Tip

See Registration quality metrics for comparing pairwise image similarity metrics under different transform keys.

Memory and parallelism

Pairwise registrations run in parallel by default (via Dask). Limit concurrency with n_parallel_pairwise_regs to reduce peak memory.
Control the Dask scheduler via a context manager — not the deprecated scheduler= argument:

import dask
with dask.config.set(scheduler="threads"):
    params = registration.register(msims, ...)

Next steps

Fuse the registered tiles → Fusion overview
Troubleshoot registration problems → Registration troubleshooting
Extend with a custom registration function → Extension API: pairwise registration
